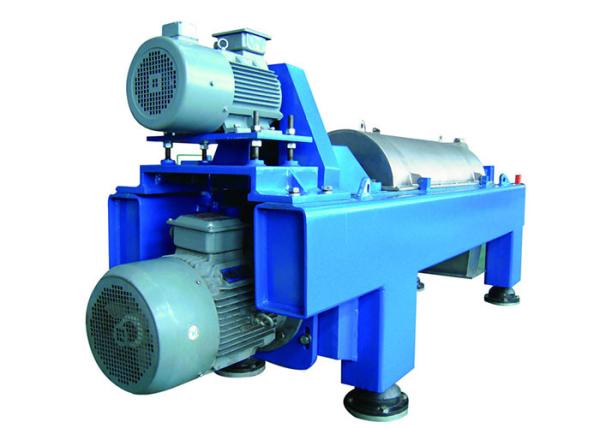

Waste WaterTreatment Horizontal Decanter Centrifuge for Sludge Dewatering
Product description:
Decanter centrifuge is a mechanical equipment which utilize the principle of centrifugal and sedimentation and can carry out continual separate the suspend liquid with density difference.
The centrifuges which made by out factory can clarify, dehydrate and classify the suspensions with 0.002-3 mm solid-phase particles and thickness range at 0.5~40%.
The product can be classify into two type LW-counter-current and parallel-current base on its structure feature.
According to feed feature, product can be divide into LW two-phase separator, LWS three-phase separator.
Decanter centrifuge is most often used for clarification of liquid containing high concentrations of solid, removing solids from liquid.
It is usually used in waste water and PVC sludge industry. And also can be used in sunflower oil, palm oil and tea industry.
Product competitive advantage:
1, Helical pusher adopts the special antifriction method: sprinkle hardness alloy or inlay hardness alloy anti-friction disk; anti –corrosion stainless steel is employed for the material of the main parts of drum, so that assure the durability and longer using lifetime of the equipment.
2, According to the material thickness, flow change , the rotate speed difference and tolerance can be adjusted.
3, The decanter occupied little area, easy to be assembly and commissioning; the whole machine is operated hermetically, and has a good production environment.
Product Specifications:
| Model | Drum diameter mm | Draw Ratio L/D | Speed of drum r/min | Factor of
separation G | Spiral difference
rotate speed r/min | Inlet
capacity(m3/h) | Main/assist
motor (KW) |
| LW250 | 250 | 3.73 | 4200 | 2467 | 2~31 | 1-7 | 11/4 |
| LW350 | 350 | 4.4 | 3600 | 2540 | 5~25 | 5~18 | 22/5.5 |
| LW450 | 450 | 4.4 | 3200 | 2580 | 5~25 | 5~25 | 30/11 |
Packing
1. Remove the pipes then covered the whole machine with plastic to proof water and dust.
2. Put the machine into the seaworthy wooden case as well as PLC control cabinet and other spare parts.
Delivery
1. For the complete machine: Transport to Shnaghai Port by bus, then shipping to the destination port
2. For small spare parts: Packed into carton and then transported by express
QC/Technical Support
1, Every company deeply understand that quality is the basic weapon for an enterprise to win. Quality is one of the factor that helped the business to achieve success, so we strive to provide qualitative business.
2, Our Quality Control department is comprised of experienced engineers, technicians and QC inspectors. The best products from the high reputation company and will do better than any other company.
